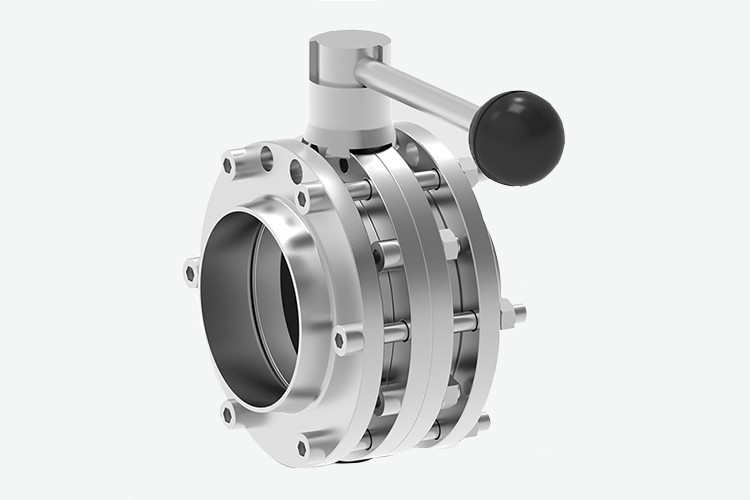

Butterfly T-Smart

Butterfly valves in the T-smart 7 series provide a complete range of variants to serve any application. They are used as cost-effective shut-off elements on valve blocks, panels and pipe fences for product and cleaning.

The Butterfly Valves T-smart 7 are characterized by their hygienic design without dome and sump. The product flow meets little resistance, product areas drain automatically and cleaning proceeds efficiently.

Technical Details

  • CONNECTION DIAMETER

    DN15-DN150, OD0,5”-OD4”

  • BODY MATERIAL

    AISI 304, 316L

  • SEAL MATERIAL

    EPDM, FKM, HNBR, VMQ

  • PRESSURE

    up to 10 bar

  • TEMPERATURE

    up to 150°C

  • INTERNAL FINISH

    Ra<0.8µm

Advantages

  • Robust valve disk
  • Low switching torque
  • One-piece flange design
  • Selection of 2 metallic product wetted materials
  • Easy maintenance
  • Manual and pneumatic actuator
