Combined

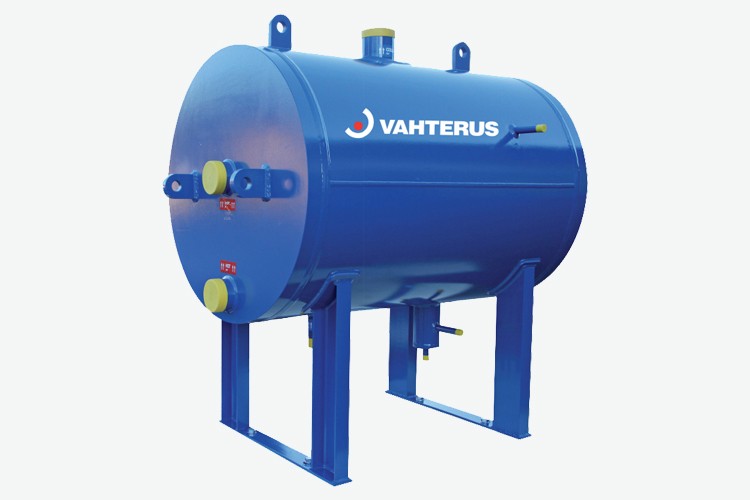

The Combined heat exchangers by Vatherus integrate the evaporator and separation system within a single vessel, which makes installation easier.

The compact size of the Vahterus Combined produce savings in costs and piping insulation. The cleaning of these units can be performed in a simple and efficient way through retrowashing and/or chemical cleaning.

Built from a circular plate package fully welded inside a shell, Combined ensures a safe and longstanding operation, suitable to be used with any kind of refrigerant.

Technical Details

  • PRESSURE

    from vacuum to 500 bar

  • TEMPERATURE

    from -164 °C to 899 °C

  • CAPACITY RANGE

    50 - 2000 kW

Advantages

  • Heat exchanger and separator function combined in one shell
  • Fully welded Plate&Shell technology
  • Convenient shape, no external piping, easy to insulate
  • High efficiency separator
  • Small refrigerant charge
  • Round plate
  • Design based on practical tests
  • Suitable for ammonia and all other common refrigerants
