Heat exchangers Heat exchangers Gasketed plate Free Flow series

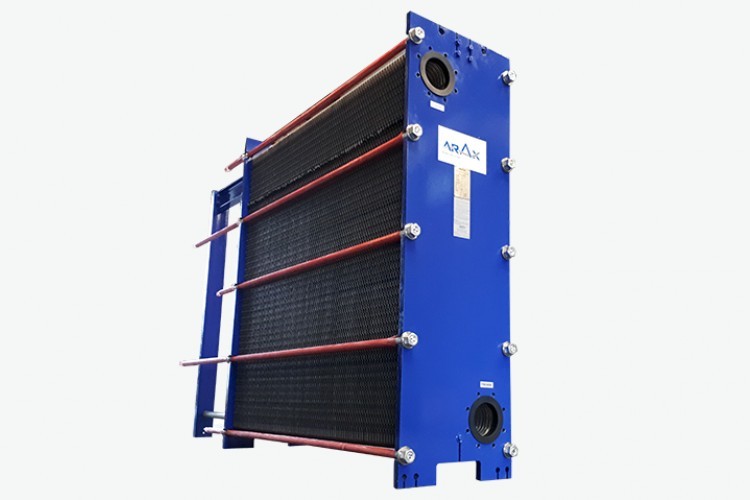

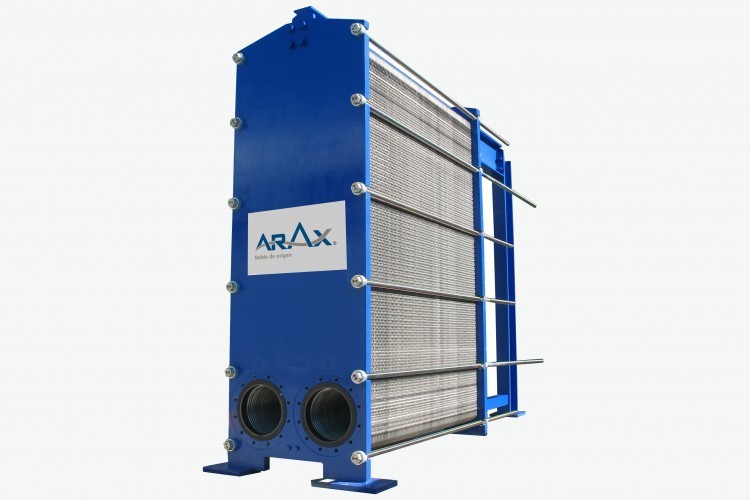

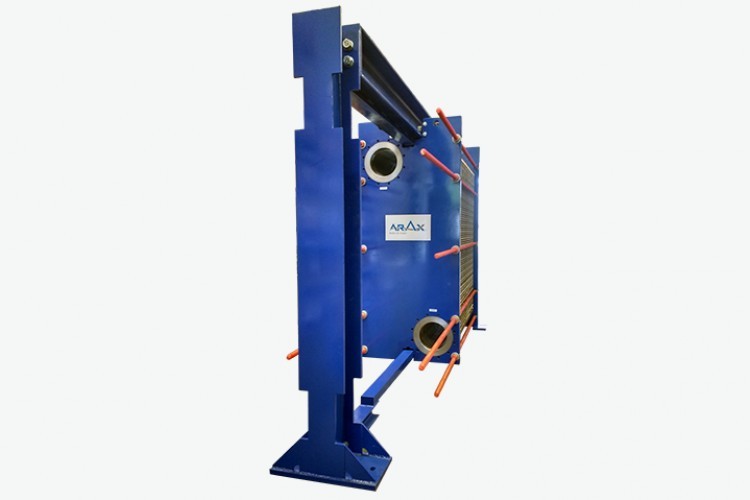

The ARAX plate heat exchangers from the Free Flow series are particularly suited for products containing solids and pulp as well as for highly viscous products. They are distinguished by their:
~ wide gap cross-section from 5 mm to 10 mm
~ flow channels without metal support point
~ profiling structure (waves) that is resistant to clogging
These properties are why they are so well suited for the sugar, paper, food and fruit juice industries. They are also often used in the renewable energy sector.
Technical Details
CONNECTION DIAMETERS
from 4“ to 14”
FLOW RATES
up to 1900 m³/h
PRESSURE
up to 16 bar
PLATE SIZES
from 1406 mm x 432 mm to 2835 mm x 980 mm
Advantages
- Blockage-free operation thanks to gap of constant width
- The alternative to shell-and-tube and spiral heat exchangers
- Especially suitable for applications involving media containing fibres and solids
Sugar
- Processing of sugar from cane or beet
- Extraction
- Clarification
- Multiple-effect evaporation
- Cristalisation and condensing
Oils & Fats
- Winterisation processes (degumming)
- Energy economiser
- Neutraliser
- Bleaching and deodorizing of oil
Food
- Cooling or heating
- Pasteurisation
- Thermal treatment of liquid food
Renewable Energies
- Bioethanol production
- Crude oil refining
- Esterification
- Methanol recovery and conditioning
