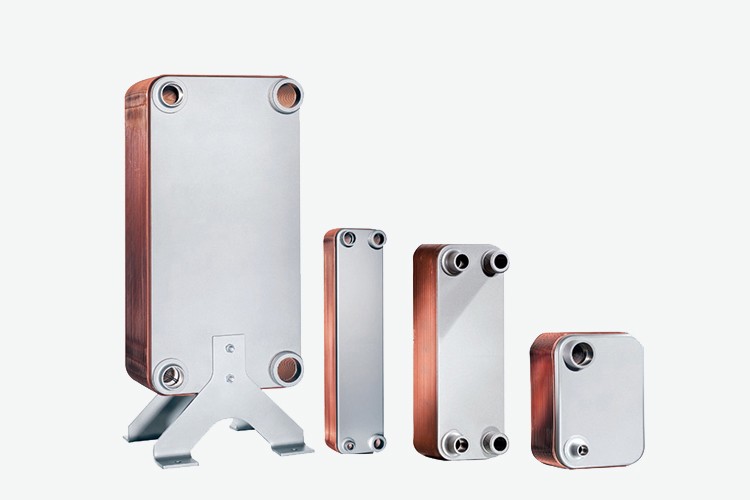

GBS-GBH series

These brazed heat exchangers comply with all requirements for applications of any size – they are resistant to pressures of up to 30 bar at ± 200 °C – bringing quality, economy efficiency and an excellent thermal performance.

Available in 11 sizes, the GBS Series provides a wide range of applications at an excellent price/performance ratio.

The GBH Series is designed to operate consistently on the pressure range of up to 45 bar, offering a great variety of circuit possibilities. Operating with the effective non-ozone depleting refrigerant R410A the GBH range offers an optimized corrugation pattern in the wave fields of the heat exchanger plates as well as further improvements to the inlet and outlet openings.

Technical Details

  • TEMPERATURE

    from -196 °C to 200 °C

  • PRESSURE

    up to 40 bar (GBS) and up to 45 bar (GBH)

  • BRAZING MATERIAL

    Copper

Advantages

  • Highest flexibility
  • Compact design
  • Solid construction
  • Wide range of applications

Refrigeraction and HVAC
