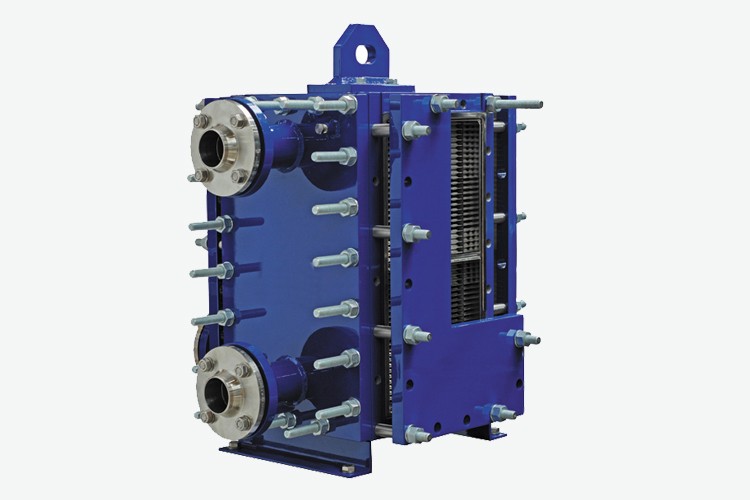

Heat exchangers Heat exchangers Welded plate K°Bloc

The K°Bloc heat exchanger combines two different plate corrugations in an innovative way. The plates are rotated through 90° to one another and then welded together to produce two different cross-flow channels.

The frame is made of four pillars, a bottom plate and a top plate together with four side pressure plates, and connections mounted in the pressure plates. All frame components are bolted together for easily dismantling to clean and maintain the plate pack.

K°Bloc is available in various corrugation designs and sizes for a wide range of applications. Adjustable deflectors allow the heat exchanger to be adapted to its operating points delivering these features.

Technical Details

  • TEMPERATURE

    up to 315 °C

  • PRESSURE

    up to 32 bar

  • FLOW RATE

    up to 3,860 m³/h

  • MATERIAL

    AISI 1.4404, SMO, Titanium, etc.

  • SURFACE AREA

    1–320 m²

  • CONNECTION DIAMETER

    DN50–DN400

  • CORRUGATION PATTERNS

    Herring-bone, Dimple
