Equipment and Components CIP devices Cleaning devices Orbital

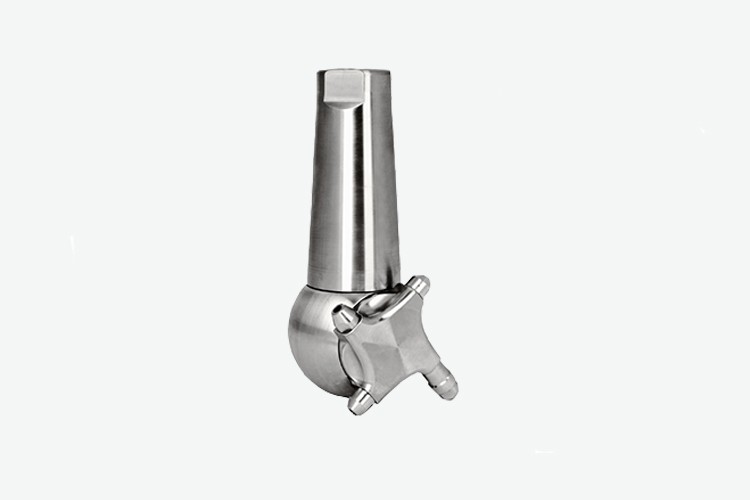

Orbital cleaners work on the basis of two rotating axes, one horizontal and one vertical. The special characteristics of this type of cleaner are the round-jet nozzles that rotate in two planes and produce highly focused high impact jets for intensive cleaning of the inside surfaces of tanks or vessels.

Technical Details

  • CLEANING DIAMETER

    up to 33 m

  • FLOWRATE

    up to 790 l/min

  • TEMPERATURE

    up to 95 °C

  • PRESSURE

    up to 8 bar

  • MATERIAL

    AISI 316L

  • SPRAY PATTERN

    360°

Advantages

  • Driven by the cleaning medium (exception TMC)
  • Cleaning cycle can be completed between 3 and 9 minutes
  • Hygienic design
  • Slim, compact design
  • Intensive cleaning with targeted jets
  • Reproducible cleaning by monitoring of the rotation with sensor SMW 100 or Veri-Clean (optional)
