Equipment and Components Valves Industrial Series 400 M

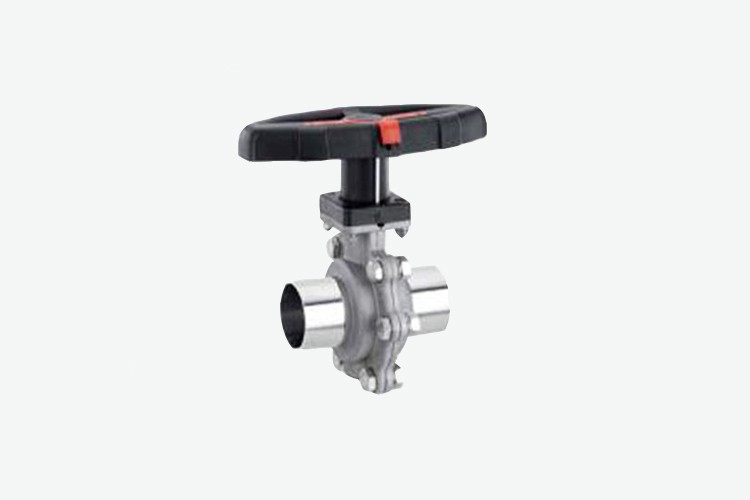

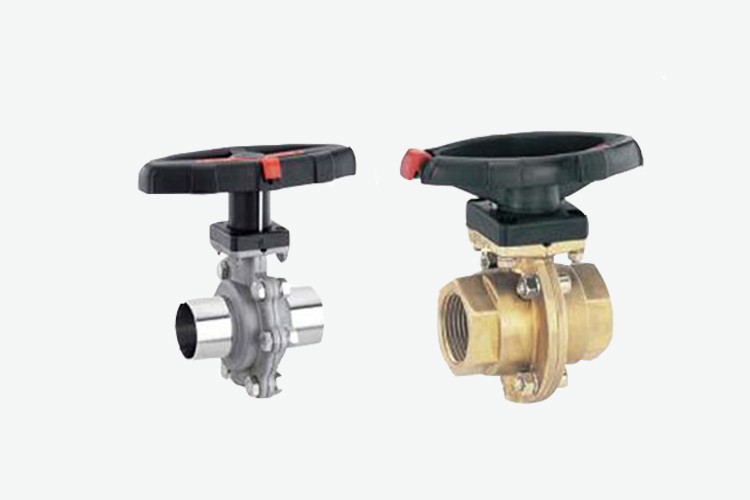

The metallic butterfly valves are used as on-off valves in industrial applications, even for handling inert and corrosive liquid and gaseous media.
Technical Details
CONNECTION DIAMETER
DN25-DN600
BODY MATERIAL
GGG40, GG25, bronce, AISI 316L
DISC MATERIAL
GGG40 epoxy, AISI316, Super Duplex, GGG40 Rilsan® PA11
SEAL MATERIAL
EPDM, NBR, FPM, Flucast AB/P, TFM™/silicone,TFM™/EPDM, TFM™/FPM
TEMPERATURE
up to 150 °C
PRESSURE
up to 10 bar
Advantages
- Modular construction
- Simple installation
- Low torque
- Optional: electro-pneumatic positioners and process controllers

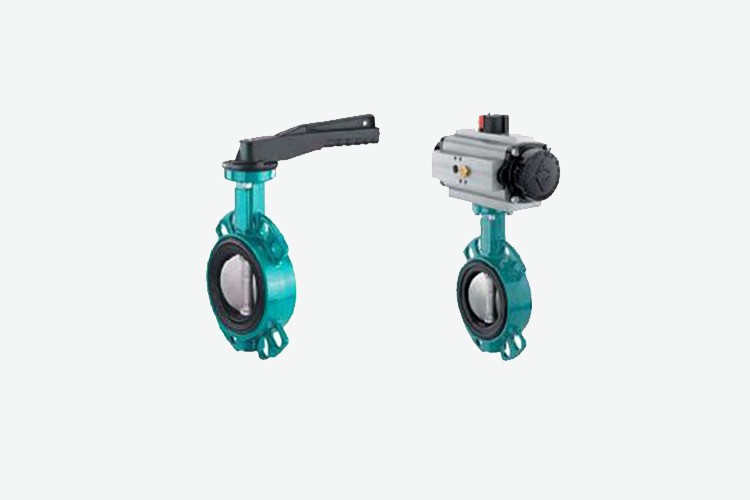

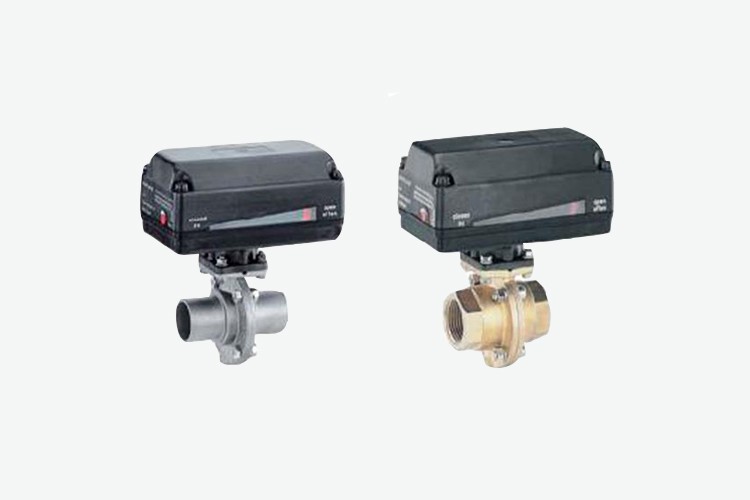

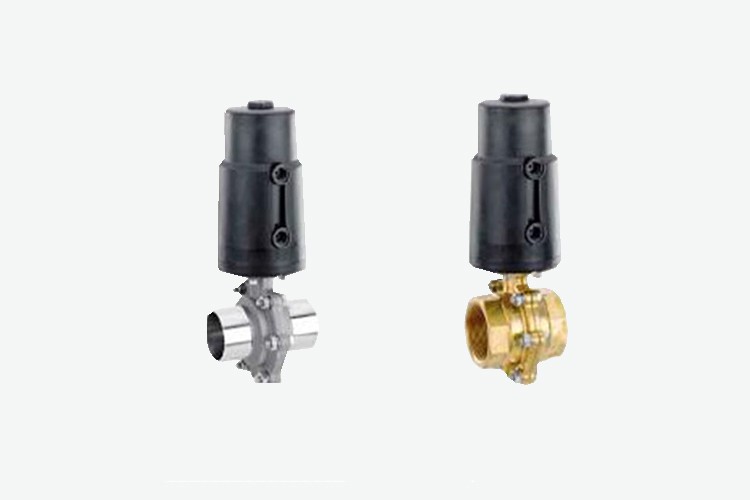

- Actuator: manual, pneumatic or motorized
