Heat exchangers Heat exchangers Shell and plate Shell & plate

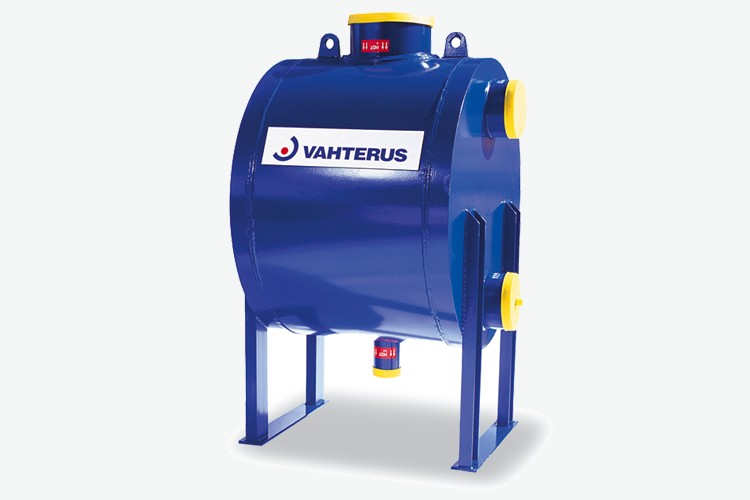

At the heart of the Plate and Shell heat exchanger (PSHE) there is a fully welded pack of circular plates which is housed within an outer pressure vessel. The PSHE combines the best features of PHE and shell & tube exchangers offering a durable, compact and gasket free solution with high heat transfer, high pressure and high temperature capability.

By using a clever system of internal flow directors, it is possible to have all 4 primary and secondary fluid connections on one end of the unit, which significantly reduces the required space.

Technical Details

  • TEMPERATURE

    from -200 ºC to 900 ºC

  • PRESSURE

    from vacuum to 200 bar

  • MAXIMUM HEAT TRANSFER AREA

    2000 m²

Advantages

  • It is possible to open the unit for cleaning and plate package replacement.
  • Gasketless
  • They take less than 25% of footprint compared to shell and tube
