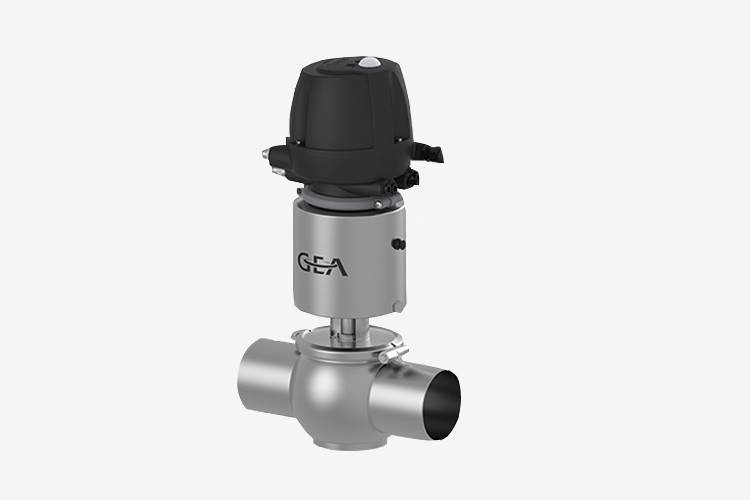

Single seat ECOVENT

The valves of the ECOVENT Series are characterized by their compact design. As opposed to the VARIVENT system with multiple options, this series provides a simple and economical solution for standard equipment.

This series shares the same housing that the VARIVENT series, but there are only two models available: N and W. They have a more compact actuator and lantern than the VARIVENT series, allowing a more cost effective version but keeping the functionality intact.

Technical Details

  • CONNECTION DIAMETER

    DN10-DN100, OD1”-OD4”

  • BODY MATERIAL

    AISI 316L

  • SEAL MATERIAL

    EPDM, FKM, HNBR

  • PRESSURE

    up to 10 bar

  • TEMPERATURE

    up to 150 °C

  • INTERNAL FINISH

    Ra<0.8 µm

Advantages

  • Hygienic design
  • Shut-off valves
  • Single seal
  • Manual and pneumatic actuator
