Equipment and Components Valves Aseptic Tank bottom Aseptomag

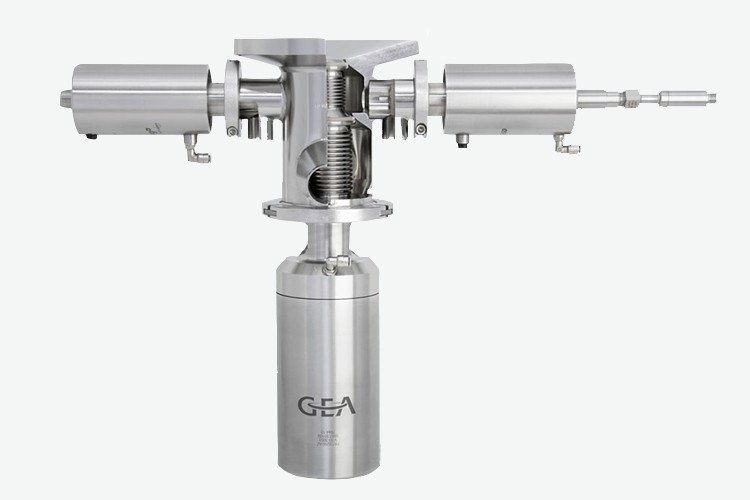

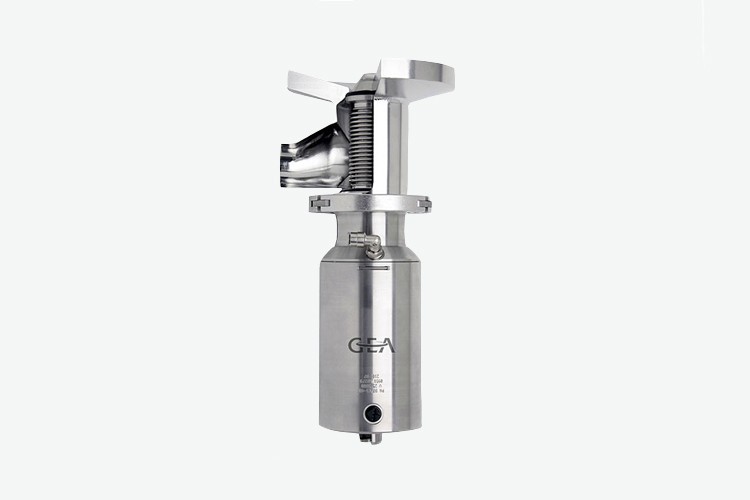

Aseptic bottom valves are devices for the discharge of product from reactors or vessels, in aseptic processing plants. Two versions are available, single bottom seat or doublé chamber with integrated steam barrier which enables the safe separation between the reactor and the discharge line.

The integrated function of seat lifting capability permits fully automatic seat cleaning during production. The valve enables the total separation of antagonistic media and offers you maximum process safety.

Available models: BS/DKBS

Technical Details

  • CONNECTION DIAMETER

    DN25-DN150, OD1”-OD6”

  • BODY MATERIAL

    AISI 316L

  • BELLOW MATERIAL

    316L

  • SEAL MATERIAL

    Tefasep®, PTFE, EPDM, Viton

  • PRESSURE

    up to 10 bar

  • PRESSURE

    up to 150°C

  • INTERNAL ROUHGNESS

    Ra<0.8µm, optional Ra<0.4µm

Advantages

  • Modular design
  • Low-maintenance
  • Hygienic design
  • PT-100 temperature probe can be integrated as optional
