Equipment and Components Valves Sanitary VARIVENT Tank bottom

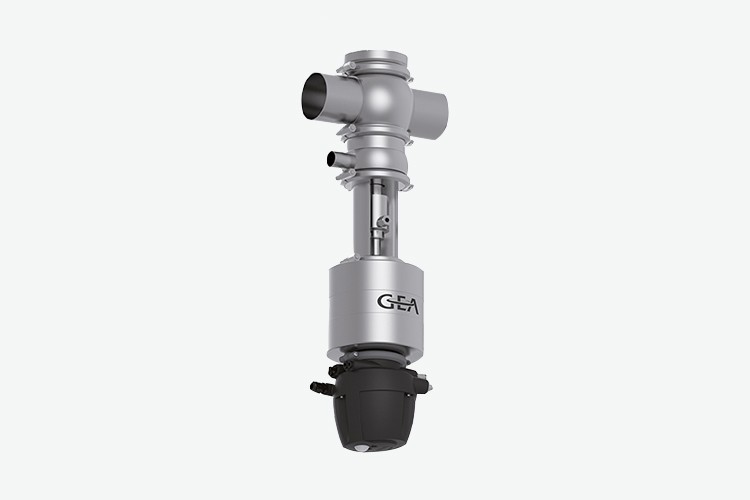

VARIVENT® tank bottom valves are used for shutting off pipelines at tanks or containers. Various housing connections can be welded directly into the tank bottom, flush mounted into the tank bottom wall.

There are two types of tank bottom valves available:

Single seat, type N and U: they are used when there is no need for safe separation between the tank and the piping, because there is no risk of mixing between incompatible media.

Double seat mixproof, with radial seal, type T: they are used if the tank has a single line for filing and emptying. The mixproof separation between the piping and the tank interior allows to clean the pipes while the process continues in the tank.

Technical Details

  • CONNECTION DIAMETERS

    DN25-DN150, OD1”-OD6”

  • BODY MATERIAL

    AISI 316L

  • SEAL MATERIAL

    EPDM, FKM, HNBR, FFKM

  • PRESSURE

    up to 10 bar

  • TEMPERATURE

    up to 150 °C

  • INTERNAL FINISH

    Ra<0.8 µm

Advantages

  • Hygienic design
  • Piping shutoff in tanks and vessels
  • Single or double seat
  • Two types of flanges
  • Manual and pneumatic actuator
