Equipment and Components Valves Sanitary VARIVENT Vacuum

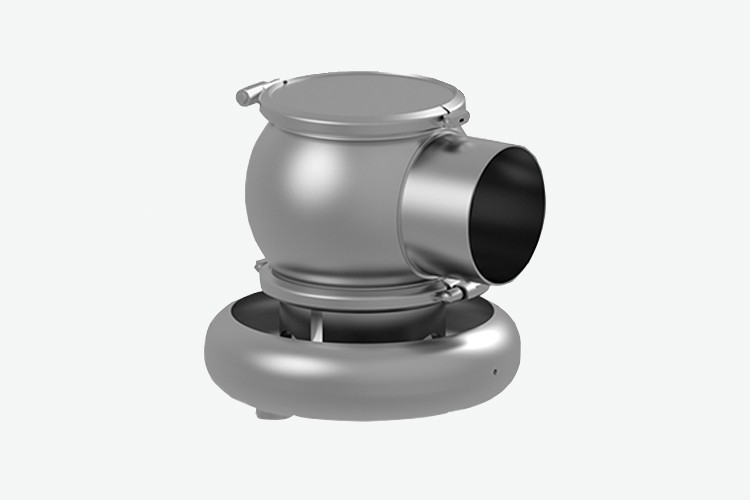

VARIVENT® vacuum valves are designed to hygienically protect tanks against vacuums. A protection is already ensured when a vacuum surpasses -2.5 mbar. To minimize the cleaning effort and to protect the valve disc against conglutination, the seat ring is non-stick coated. All used elastomer seals are FDA compliant. VARIVENT® vacuum valves only require a fast response time when vacuum conditions occur. Additionally they have a safe sealing at overpressure conditions.

Technical Details

  • CONNECTION DIAMETER

    DN65-DN100, OD2,5”-OD4”

  • BODY MATERIAL

    AISI 316L

  • SEAL MATERIAL

    EPDM, FKM, HNBR

  • PRESSURE

    up to 6 bar

  • INTERNAL FINISH

    Ra<0.8µm

Advantages

  • Optimized protection against pollutant particles
  • Ideal combination with the VARITOP® Tank Safety System
  • Fast response time
  • Additional equipment
